IFM Inductive sensor IF5313 IF-3002-BPKG/55V in stock

Brand Name : IFM

Model Number : IF5313

Certification : rohs

Place of Origin : Germany

MOQ : 1PC

Price : USD

Payment Terms : T/T

Supply Ability : 500PCS/MONTH

Delivery Time : 4-6weeks

Packaging Details : Standard Packing

Application : for process sensors

Product Name : Inductive sensor

Model : IF5313

Manufacturer : IFM

Origin : Germany

Warranty : 12 months

Shipping weight : 1KG

Condition : Origin and Brand New

Contact Now

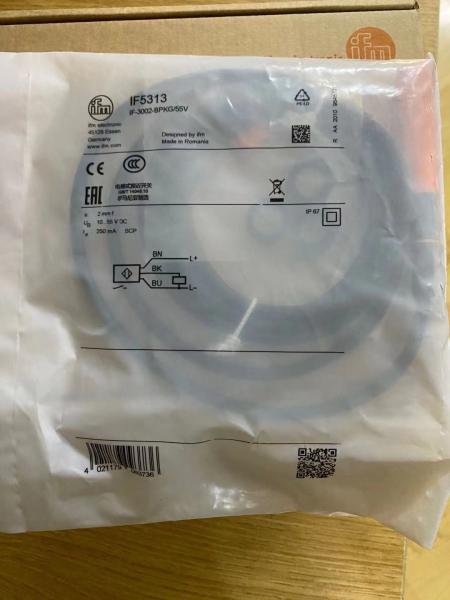

IFM Inductive sensor IF5313 IF-3002-BPKG/55V

High protection rating for the requirements of harsh industrial environments

Wide operating temperature range
Very high switching frequency
Large operating voltage range
For a precise position detection on machines

Product characteristics

Electrical design	PNP
Output function	normally open
Sensing range[mm]	2
Housing	threaded type
Dimensions[mm]	M12 x 1 / L = 71

Electrical data

Operating voltage[V]	10...55 DC
Current consumption[mA]	15; (24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC[V]	2.5
Permanent current rating of switching output DC[mA]	250
Switching frequency DC[Hz]	800
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range[mm]	2
Real sensing range Sr[mm]	2 ± 10 %
Operating distance[mm]	0...1.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr]	1...15
Switch point drift[% of Sr]	-10...10

Operating conditions

Ambient temperature[°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF[years]

945

Mechanical data

Weight[g]	88.5
Housing	threaded type
Mounting	flush mountable
Dimensions[mm]	M12 x 1 / L = 71
Thread designation	M12 x 1
Materials	PBT

Displays / operating elements

Display

switching status

1 x LED, yellow

Delivery details

•We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong. if you have any special needs,please notify me.

•It will take 3 to 7days to reach in your hands.China Post delivery schedule will be in 20-45 days. If you can't wait, please choose other express.

IFM Inductive sensor IF5313 IF-3002-BPKG/55V in stock

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

IFM Inductive sensor IF5313 IF-3002-BPKG/55V in stock
